Vision Systems for Ceramics

Computer vision quality control

SACMI is manufacturing vision systems that can be both stand-alone solutions or part of a  ceramic line.

OUR SOLUTIONS FOR THE QUALITY CONTROL

SACMI is providing in-line and stand-alone equipments for computer vision inspection of ceramic tiles. The quality control is guaranteed by accurate checks improved by the long time user experience.

SACMI can project and develop custom systems for customers' different exigences, please fill in and let us have the info request form

vision systems for ceramic tile line

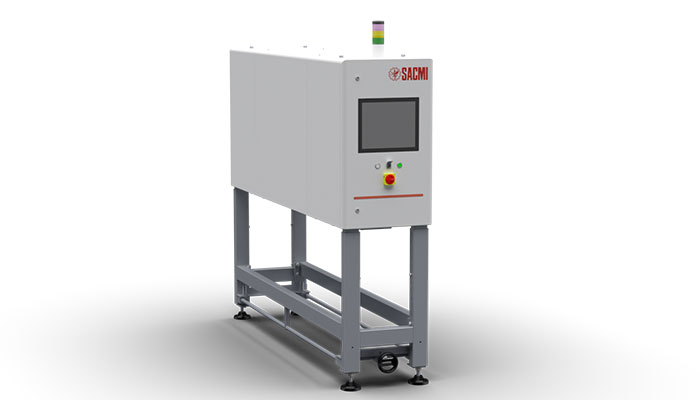

Processmaster - tiles control system

Processmaster

INSPECTION BEFORE TILE FIRING - tiles control system

Designed to be installed at the end of the glazing line. Extremely compact (0.4 m), installed on an existing conveyor, is equipped with a color camera and symmetrical LED lighting system which ensures improved inspection.

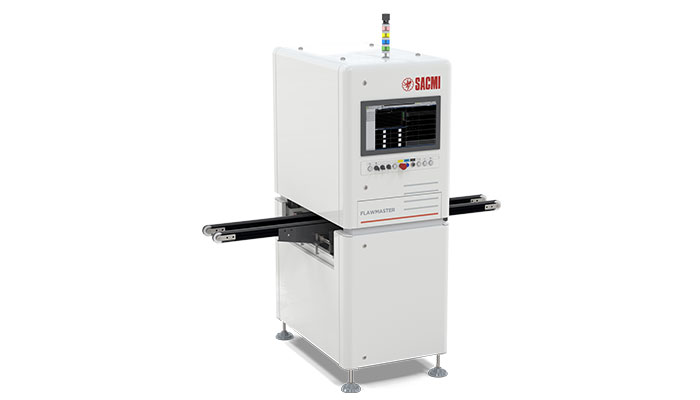

Flawmaster - tiles control system

Flawmaster

VISION SYSTEM FOR QUALITY CONTROL OF CERAMIC SURFACES - INSPECTION ON FINISHED PRODUCT

Can be implemented on any ceramic sorting line. Replaces human inspection. Allows, thanks to advanced AI algorithms, consistent and repeatable identification of countless defects on floor and wall products, such as: surface, mechanical and decoration flaws, variations in shade/color and in thickness/flatness.

Advancheck and Newcheck - tiles control system

tiles control system

Advancheck and Newcheck - FLATNESS, SIZE AND ORTHOGONALITY INSPECTION

Dimensional and flatness checking device integrated in one single steel structure in order to ensure a high level of quality and reliability.

SVV

CERAMIC SLAB THROUGH-BODY VEINING INSPECTION SYSTEM

Integrated on the Continua+ slab manufacturing line, the SVV vein 'vision' system performs a complete inspection of the surface of every single slab to obtain detailed information on the decoration. The SVV system is particularly effective when used in the process that forms slabs with through-body veining. With this type of decoration the system detects the exact position of the veins and sends the information to the digital decoration unit; the latter then self-adjusts to ensure continuity between the veining on the upper surface and that which runs through the body of the slab.

VISION SYSTEMS FOR SANITARYWARE

SACMI had developed a 3D robotised vision system for the complete sanitaryware inspection of the size and surface defects.

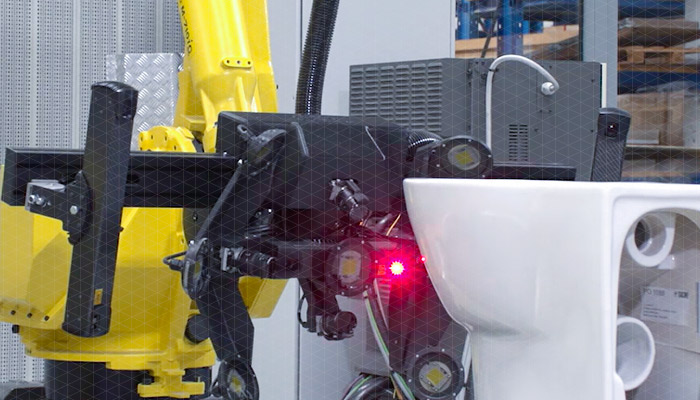

Qualitrack Sistema di ispezione per sanitari ceramici

Qualitrack

Inspection system for ceramic sanitaryware

Innovative robotic cell for the inspection of fired ceramic parts. The robotic system, equipped with cameras, 3D scanners, illuminators and relevant management software, is able to detect surface and dimensional defects both on the external surface of the product and in the hidden parts such as siphon and under brims, as well as on the back. The complete dimensional analysis can be carried out on each piece or on samples. Read more
