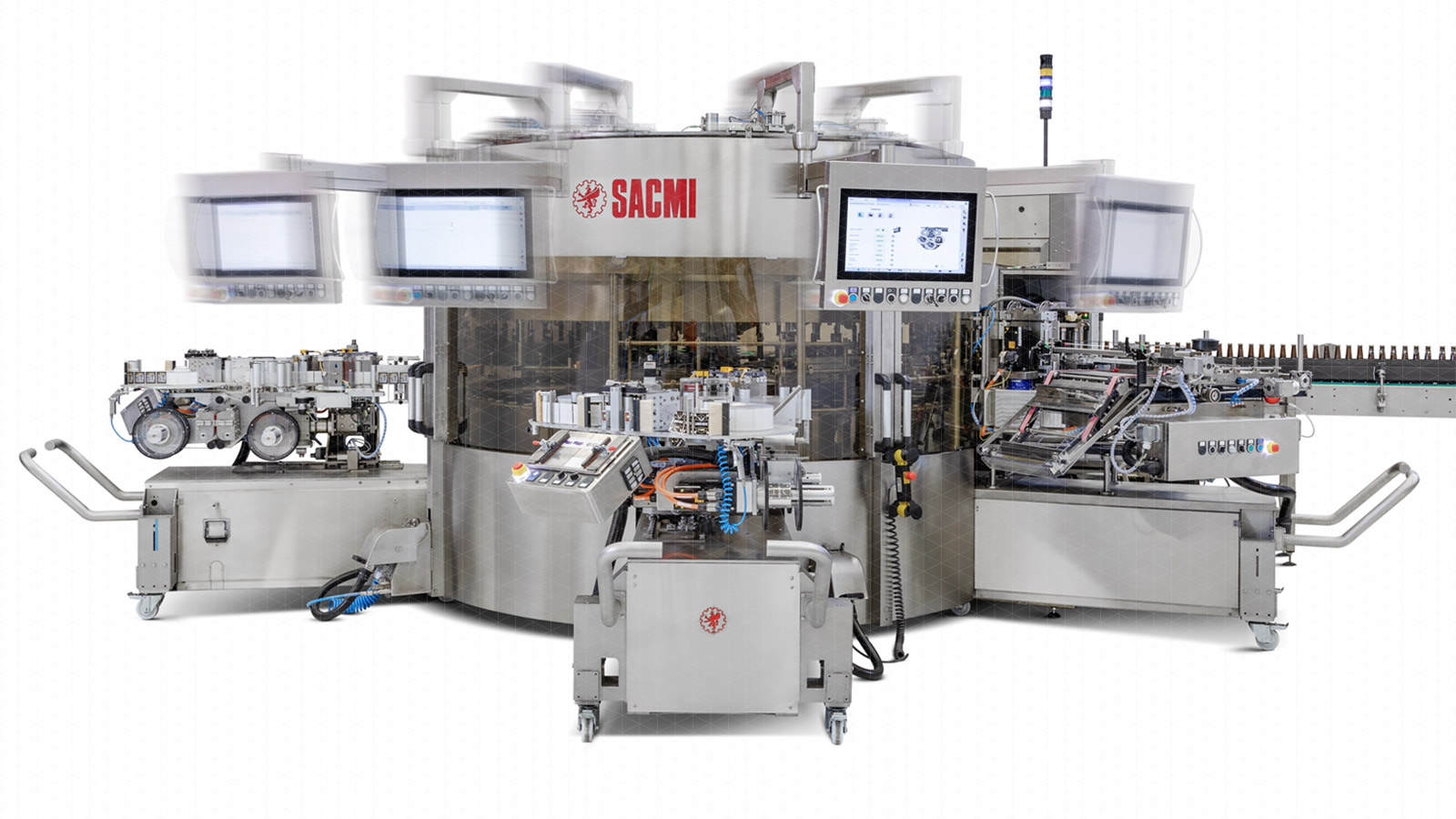

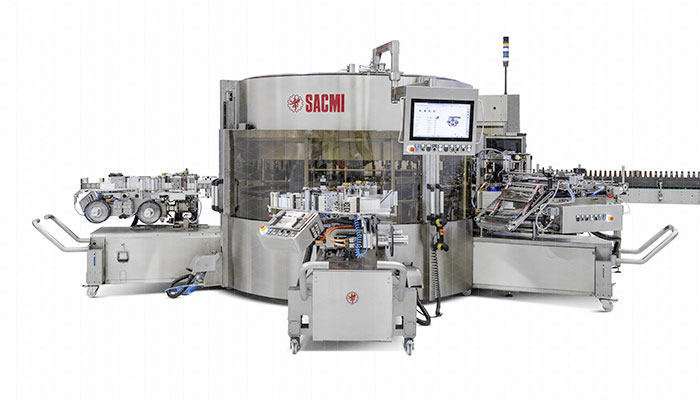

FlexiOpera BEER

THE MODULAR LABELER SPECIFICALLY DESIGNED FOR THE BEER INDUSTRY

FlexiOpera for the beer market is designed to operate in harsh environments, providing protection from water and glass debris, improved reliability thanks to the advanced electronic hardware architecture and excellent labeling accuracy.

PRODUCT DETAILS

  • Flexibility
    Possibility to decorate the same container with one or more labels using either the same technology or a combination of different labeling technologies.
  • Plug & play solution
    Our technology allows for a considerable reduction in machine size and lets manufacturers benefit from simpler installation on new or existing lines.

  • Ergonomic design
    Super-easy access to the main carousel and the labelling stations shortens changeover times, makes cleaning and maintenance easier and gives easier access to the infeed screws.

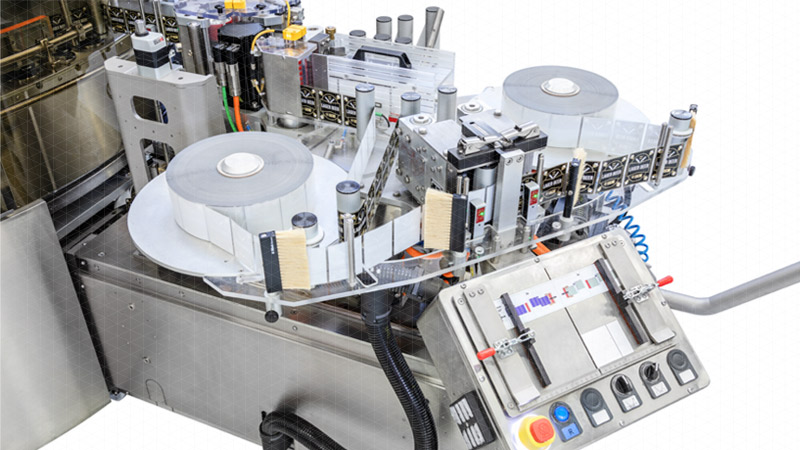

ADHESIVE MODULE

High performance

  • Downsized labeler, less maintenance, easy access to the labeler – ‘Slim fit’ design
  • Fully servo-driven motors: high speed, precision application

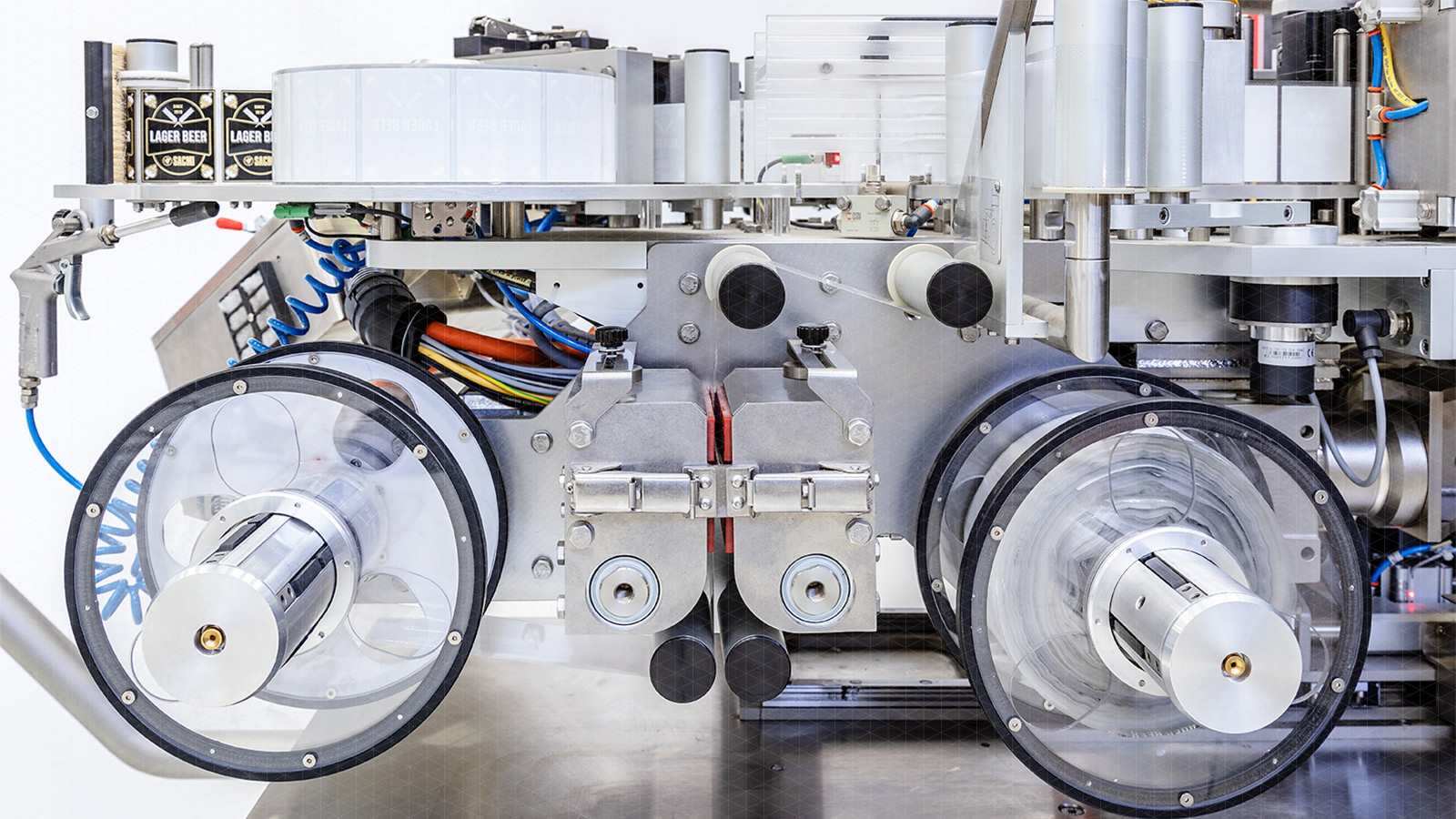

  • Automatic splicing at full speed for maximum productivity
  • Auto-splicing on unwinding and rewinding provides a true NON-STOP system
  • Push-Pull system for a better label control
Accuracy and efficiency
  • Air buffer: contactless buffer system to handle and apply thin labels, accurate application
  • Top precision: ± 0.5 mm accuracy at dispenser plate
  • No machine stoppage at end of reel: no interruption of production and greater machine availability
  • Four-axis adjustment by handwheels and numerical counters

ADHESIVE MODULE

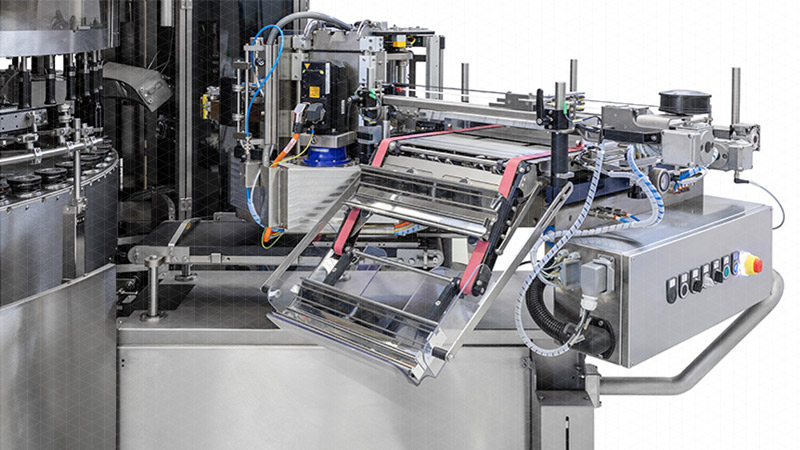

COLD GLUE MODULE

High performance

  • Extractable radial slide for better accessibility during changeovers and gripper drum tasks
  • Stainless steel glue cylinder with adjustable glue scraper
  • All safety guards are easy to open, ensuring complete accessibility to all carousel parts
  • Cold glue pump with integrated heating system
  • Forced oil lubrification with internal gear pump
Accuracy and efficiency
  • Desmodromic cam for smooth, precise pallet movements.
  • Hardened gears provide a long working life, high precision and excellent long-term application repeatability
  • Multiple labyrinth seal to ensure waterproofing
  • Quick release of label pads with a numbered connection system
  • Brush wiping system for secure label adhesion on the bottle
  • Our modules can be provided with a manual in-place cleaning device in order to clean the glue roller without demounting it from the cold glue module.

COLD GLUE MODULE
