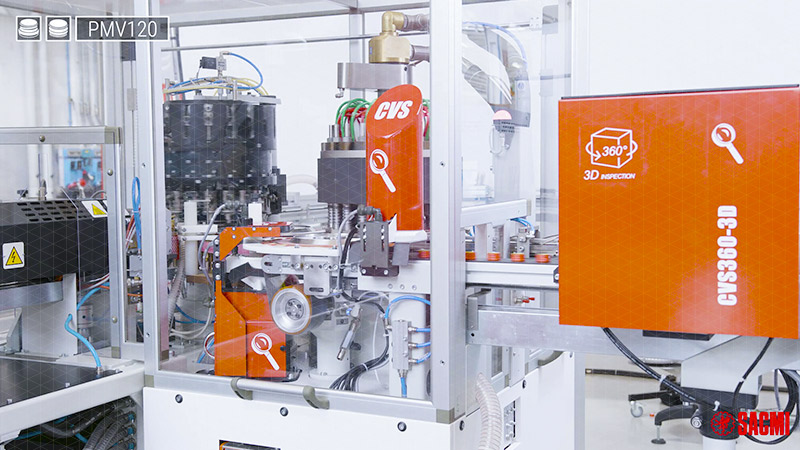

PMV120

in-shell lining machine

20 punches, productivity up to 1000 closures/min, max closure diameter 38 mm, max closure height 24 mm.

PMV120 PRODUCTIVITY UP TO 1000 cpm

Automatic lining machine suitable for extruding PVC-free compounds, cutting the melt into single pellets, inserting the pellets into the aluminium screw cap and moulding the liner according to a specifically designed profile.
Machine productivity is strongly influenced by the type of materia used, the weight and the profile of the liner.

PMV120 PRODUCTIVITY UP TO 1000 cpm

PMV120 IN ACTION

The PMV120 stands out on account of its extreme production flexibility.
It allows several different profiles to be made, ensuring definition of the most suitable solution in close collaboration with the customer, who can also count on further advanced testing at the Group's R&D facility.

Video

PMV120 IN ACTION<br>

PMV120 FEATURES

1
Totally PVC-free materials can be used
2
Automated liner application system, allowing high productivity
3
Guaranteed 100% quality thanks to incorporation of an inspection system on the line
4
The machine provides all the intrinsic advantages of compression technology, in which Sacmi is the world leader
5
Highly innovative process based on continuous extrusion of the plastic, which is then cut into batches of pre-determined size according to the liner profile
6
Perfect alignment during insertion, ensuring firm adhesion and therefore maximum cap-bottle system sealing performance

PMV120 IS EQUIPPED WITH:

  • Extruder with 35 mm screw, equipped with inverter-controlled AC motor to feed the molten material
  • Screw temperature and rpm are managed by the control system
  • Molten material by-pass valve to clean the extruder, to start and stop the machine
  • Low frequency magnetic induction unit to heat the caps, equipped with cooling system
  • Cooling system which allows independent temperature control of moulds and accessories
  • CVS153 vision system control quality of the liner
  • Optional additional camera to check the lithography
  • Cap outfeed conveyor belt predisposed for the installation of a CVS153 vision system
  • Manual feeding channel for vision system challenging, so to check inspection capabilities upon specific defects samples
  • Pneumatically operated faulty cap reject device
  • Outgoing cap counter with flow diverter for boxing
  • Automation and Beckhoff control system
  • Operator interface via PC

SACMI INSPECTION SYSTEM

The PMV120 is equipped with the CVS153 inspection system. Featuring 6 cameras and the innovative CVS360-3D inspection module, the vision system can reliably carry out full 360° inspection of the cap, both inside and out, at full line speed. More specifically, the CVS360-3D module precisely reconstructs 3D objects as 2D images, allowing for accurate inspection of sidewall decoration.

Read more

SACMI INSPECTION SYSTEM
