Decoration machines for ceramics

Digital control industrial printing machines

Complete range of high resolution inkjet printers and dry powder digital decoration machines.

DHD (DIGITAL HIGH DEFINITION)

DIGITAL PRINTER FOR CERAMIC, PLATE METAL, PLASTIC, FIBRE CEMENT AND TABLEWARE

High definition digital machine for various sizes up to 1800 mm, with maximum 12 extractable colour bars.
See table below

THE ADVANTAGES OF THE SINGLE PASS DIGITAL PRINTER

Discover on the picture below the printer details clips
1

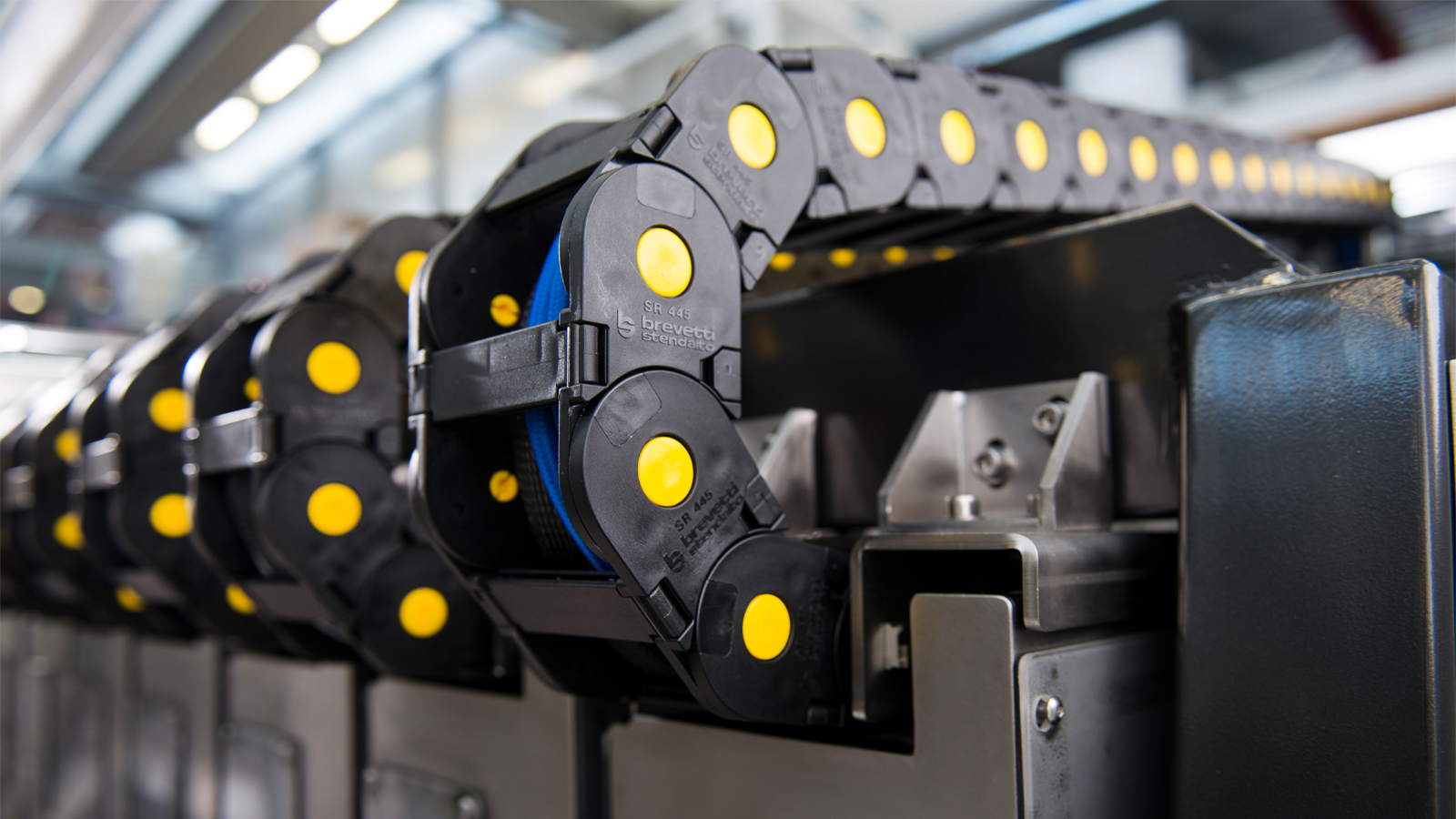

All critical components, hydraulic, pneumatic and electronic, are integrated within the bar.
2
Printing heads cleaning system, complete with vacuum tools that perfectly intercept the printing heads, so to increase the efficiency of the suction.
3
Multi-resolution. The electronic package of our printers, allow the integration of printing heads with different resolution on the same printer.

4
Suction between bars designed with specific geometry for the optimisation of the vapours evacuation.
5
Automatic spitting package. Optimization of the spitting/purge cycles can be synchronized with the whole production line.
6

Lifting of the upper structure by means of brushless motor for micrometric print heads adjustment.

7

Real Time Data Processing, the printing information travels from main PC to the print heads as a continuous flow. The processing of data is in real time.

8
Our lab, provides ink certification and waveform design for every single ink with which our printers are charged.
9
Internal development of the screening algorithm. FLS
Frequency Linearization Screen

The DHD in detail: see the advantages on the machine

TECHNICAL FEATURES DHD908 DHD1208 DHD1212 DHD1408 DHD1808 DHD1812 DHD2008
Max. printing width (mm) 903 1161 1161 1355 1806 1806 2024
Max. No. of colours bars 8 8 12 8 8 12 8
Resolution max. speed 400 DPI at 40 m/min 400 DPI at 40 m/min 400 DPI at 40 m/min 400 DPI at 40 m/min 400 DPI at 40 m/min 400 DPI at 40 m/min 400 DPI at 40 m/min
Length x Width x Height (mm) 4650 x 1950 x 2200 4850 x 2610 x 2231 6500 x 2100 x 2200 4850 x 2610 x 2231 5760 x 2900 x 2150 7790 x 3058 x 2494 8050 x 3220 x 2250

Discover the DHD world in this video

DDG Digital decoration and glazing

DRY AND WET DIGITAL DECORATION

The DDG is the current state of the art for selective depositing of grits, to achieve unparalleled effects based on materials and depths. Read more

DDG Digital decoration and glazing

CRONO - Colour management software

COLOUR MANAGEMENT SYSTEM

Color Management software that centralises and stores digital data of all the phases of the digital decoration process facilitating backup functions.

CRONO - Colour management software

DSP

MULTI PASS DIGITAL PRINTER FOR CERAMIC, METAL SHEETS, PLASTIC, FIBRE CEMENT AND TABLEWARE

The printer can manage inorganic pigments as well as UV curable organic fluids for the decoration onto any kind of substrate.

DSP1608  Digital printer
